Choosing the right exterior house trim should never be an afterthought. In addition to being an important design detail, finishing boards and trim provide the final layer of protection against rain, snow, wind and UV rays. Western Forest Products offers a wide range of high-quality fascia and trim boards well-suited to projects where durability and good looks are crucial.
Our Western Red Cedar trim and fascia boards are prized for their warm, rich look, and deep, natural luster. An incredibly beautiful species, Western Red Cedar grows in a spectrum of hues that range from a light honey yellow to a deep sienna red. The combination of grain, texture and colours create a naturally luxurious appearance that man-made materials generally cannot replicate.
WFP TRUESTYLE® Trim and Fascia is available in a range of dimensions and lengths, and is reversible with one side smooth and the other saw-textured and can be installed in either direction depending on your design requirements.
- Western Red Cedar can be allowed to weather naturally to a silvery grey look, or a wide range of stains and coatings can be applied to ensure maximum performance.
- For best results coat all six sides before installation.
- New cedar trim and fascia that is going to be finished should be protected from the weather before finish is applied.
- Allow the product to acclimatize to the environment where it will be installed to avoid unwanted shrinkage or expansion.
- Fasteners with corrosion resistance should be used, such as hot-dipped galvanized or stainless steel.
- Important Note: Never power-wash Western Red Cedar as it can damage the wood fibers.
Finishing and maintenance guidelines are provided for general informational purposes only. For specific advice on finishing and maintenance, please consult with a qualified professional.
1" Western Red Cedar Boards
| Nominal Size | Actual Size | Dressing | Seasoning | Edges | Lengths | CAD | |
|---|---|---|---|---|---|---|---|
| 1 x 4 | 23/32” X 3 1/2” | S1S2E | Green | SE | 6–20' | Download | |
| 1 x 6 | 23/32” X 5 1/2” | S1S2E | Green | SE | 6–20' | Download | |
| 1 x 8 | 23/32” X 7 3/8” | S1S2E | Green | SE | 6–20' | Download | |
| 1 x 10 | 23/32” X 9 3/8” | S1S2E | Green | SE | 6–20' | Download | |
| 1 x 12 | 23/32” X 11 3/8” | S1S2E | Green | SE | 6–20' | Download |

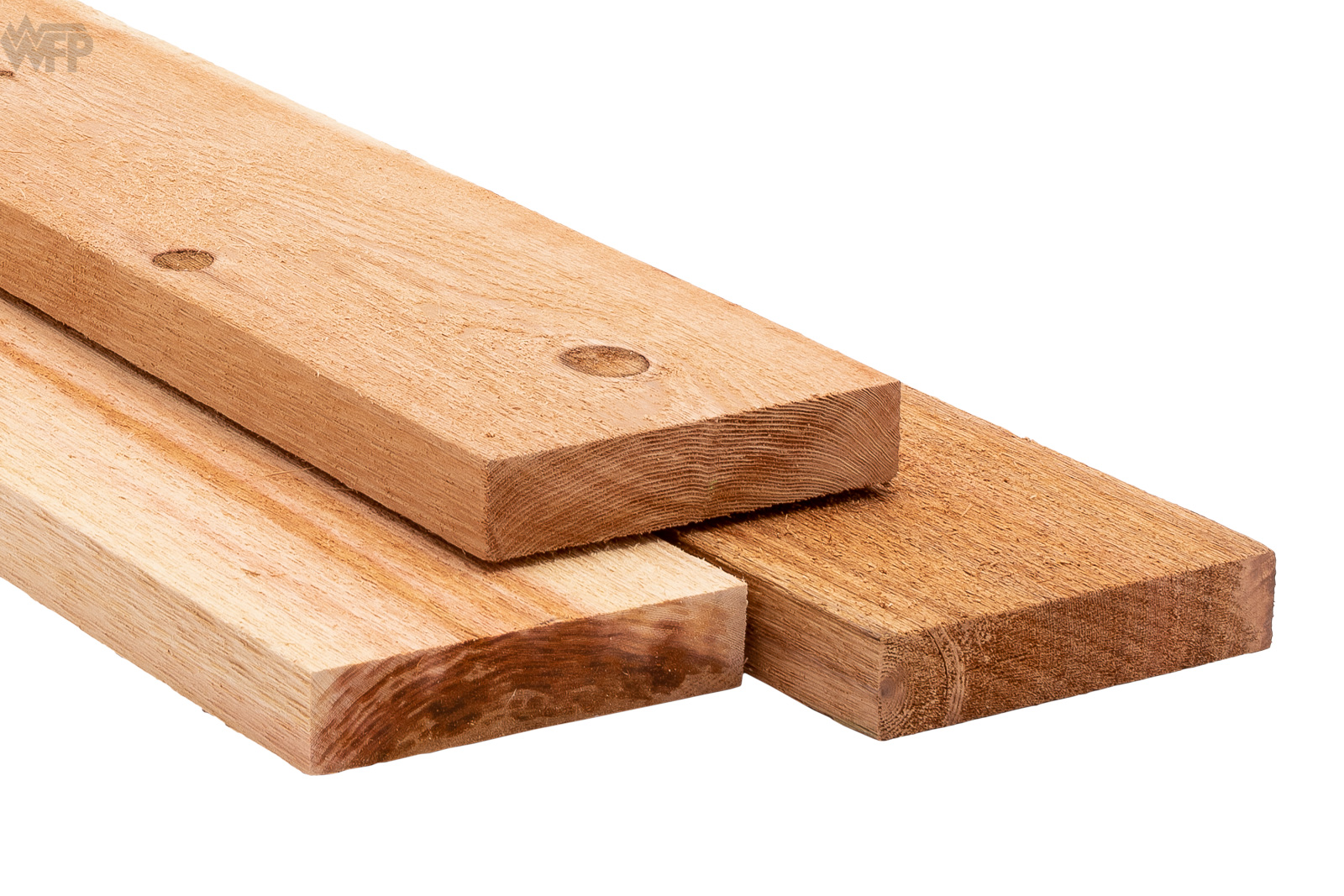

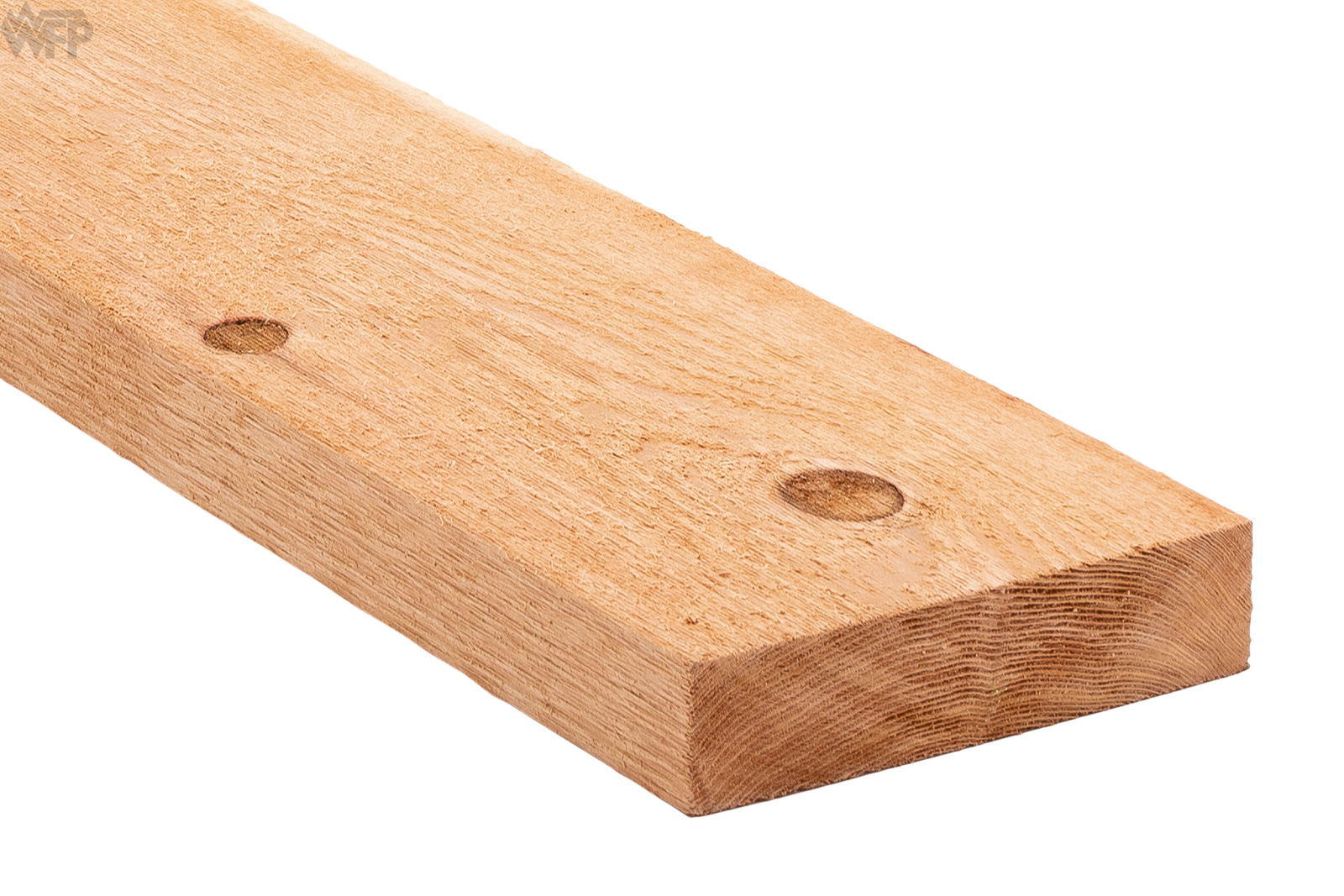

2" Western Red Cedar Appearance Rougher Head
| Nominal Size | Actual Size | Dressing | Seasoning | Lengths | CAD | |
|---|---|---|---|---|---|---|
| 2 x 2 | 1-11/16" X 1-11/16" | RH | Green | 8–20' | Download | |
| 2 x 4 | 1-11/16" X 3-11/16" | RH | Green | 8–20' | Download | |
| 2 x 6 | 1-11/16" X 5-3/4" | RH | Green | 6–20' | Download | |
| 2 x 8 | 1-11/16" X 7-3/4" | RH | Green | 8–20' | Download | |
| 2 x 10 | 1-11/16" X 9-3/4" | RH | Green | 6–20' | Download | |
| 2 x 12 | 1-11/16" X 11-3/4" | RH | Green | 6–20' | Download |
Western Red Cedar trim and fascia boards are prized for their warm, rich look, and deep, natural luster. An incredibly beautiful species, Western Red Cedar grows in a spectrum of hues that range from a light honey yellow to a deep sienna red. The combination of WRC’s grain, texture and colours create a naturally luxurious appearance that man-made materials generally cannot replicate.
Western Red Cedar is considered an ideal material for exterior applications such as siding, as its fibers are rich in natural compounds that act as preservatives. This provides the wood with a high resistance to moisture, decay, and insects, and can offer the species, and ultimately your siding, a long life cycle.
Western Red Cedar is also pitch and resin-free, meaning it readily accepts a wide range of finishes and stains. If preferred, Western Red Cedar can also be left unfinished and will gradually develop a beautiful, rustic silvery-gray patina over time.
- Western Red Cedar can be allowed to weather naturally to a silvery grey look, or a wide range of stains and coatings can be applied to ensure maximum performance.
- For best results coat all six sides before installation.
- New cedar trim and fascia that is going to be finished should be protected from the weather before finish is applied.
- Allow the product to acclimatize to the environment where it will be installed to avoid unwanted shrinkage or expansion.
- Fasteners with corrosion resistance should be used, such as hot-dipped galvanized or stainless steel.
- Important Note: Never power-wash Western Red Cedar as it can damage the wood fibers.
Finishing and maintenance guidelines are provided for general informational purposes only. For specific advice on finishing and maintenance, please consult with a qualified professional.
